Permaside Container System

The ultimate choice for modern sterilisation departments

Innovation

The Permaside Filter Container System brings fresh thinking to sterilisation. With vertical permanent microbial filters and a lid crafted from stainless steel, this innovative design keeps it light without compromising on durability.

Uniquely designed, the vertical filters are positioned to improve steam flow and are validated for up to 2,000 sterilisation cycles or approximately five years under standard operating conditions, making them one of the most durable components in the sterilisation workflow.

No replacements. No interruptions. Just consistent reliable performance with innovation you can feel.

ISO-certified. TGA & WAND Registered.

CBM Permaside Container System

CBM Unique Permaside Container

Features Benefit
Aluminium (alloy 5005) soft anodizing container base with rounded upper rim
  • Improves mechanical stability, will not buckle
  • Ensures tightness of gasket
  • Provides a greater contact surface, which preserves the seal from accelerated wear
Stainless steel lid, with no filter
  • Reduces risk of contamination
  • Check list lasered onto lid
  • No filter inspection required
  • A lid in stainless steel is much more resistant and durable than aluminium and not subjected to chromatic alterations
Lid with large silicone gasket
  • Gasket not glued, easy to replace if required
  • A large contact point between the gasket and the bottom of the container is always guaranteed to ensure long lasting air tightness
  • Container is equipped with an anti crushing device, which helps prevent damage to gasket due to excessive weight
“Double clicking” closing system
  • Easy, safe and fast closing & opening
  • Secure locking system
  • Allows for aseptic removal
CBM patented side membrane filter, which is a permanent microbial barrier, vertically positioned on two sides of the container base, which can be used for 2000 cycles or 5 years.
  • Time saving with no need to change filter
  • Steam outlet always lies at same distance from centre of load
  • Vertical positioning of filter overcomes penetration problems that arise from faulty stacking
  • Dust, dirt & condensed water do not accumulate on filter, ensuring sterility
  • Fine mesh on filter housing, cannot be penetrated by fine instruments
  • The reduced filter inlet surface improves the quality of steam saturation inside the container
  • Accidental movement of sharp instruments will not damage the filter as it is vertically positioned
Unique batch code and 5-year expiry date lasered onto each container base & lid
  • Tracking and traceability
  • Allows for efficient maintenance planning after 5 years
Sealing system with single use seals Tamper proof evidence
Holder for single use identification labels/bar codes Sterility batch tracking
180° rotating grip handles with silicone coating, available in different colours
  • Better ergonomics in lifting and transporting the container
  • Improves the grip and prevention from heat injury when handling
  • Easy colour coding for the different specialties
Label holder for 1 or 2 aluminium plates Ease of specialty identification with colour coding
Produced in compliance with the following Regulation and Standards:
– Regulation EU 2017/745 “Medical Devices”
– UNI EN ISO 11607-1: 2022
– UNI EN ISO 11607-2: 2022
– UNI EN 868-8 : 2019
– UNI EN ISO 17665-1 : 2007
– UNI EN 285 : 2021
– DIN 58953-9
– ARTG Certificate 485185, 490513, 490514
– WAND Certified
  • Quality assurance
  • Quality product
  • Meets AS5369:2023

Medical Optical stocks an extensive range of CBM products. For the full catalogue including technical specifications, download our brochure here [PDF].

Technical Features

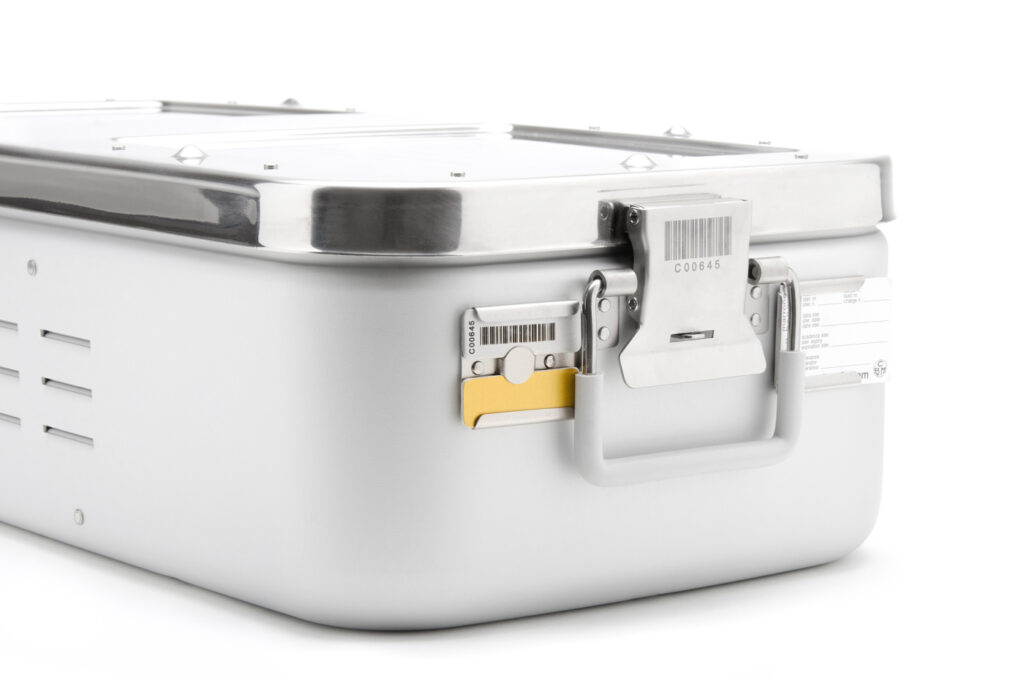

CBM Permaside Container System Tracebility

Traceability

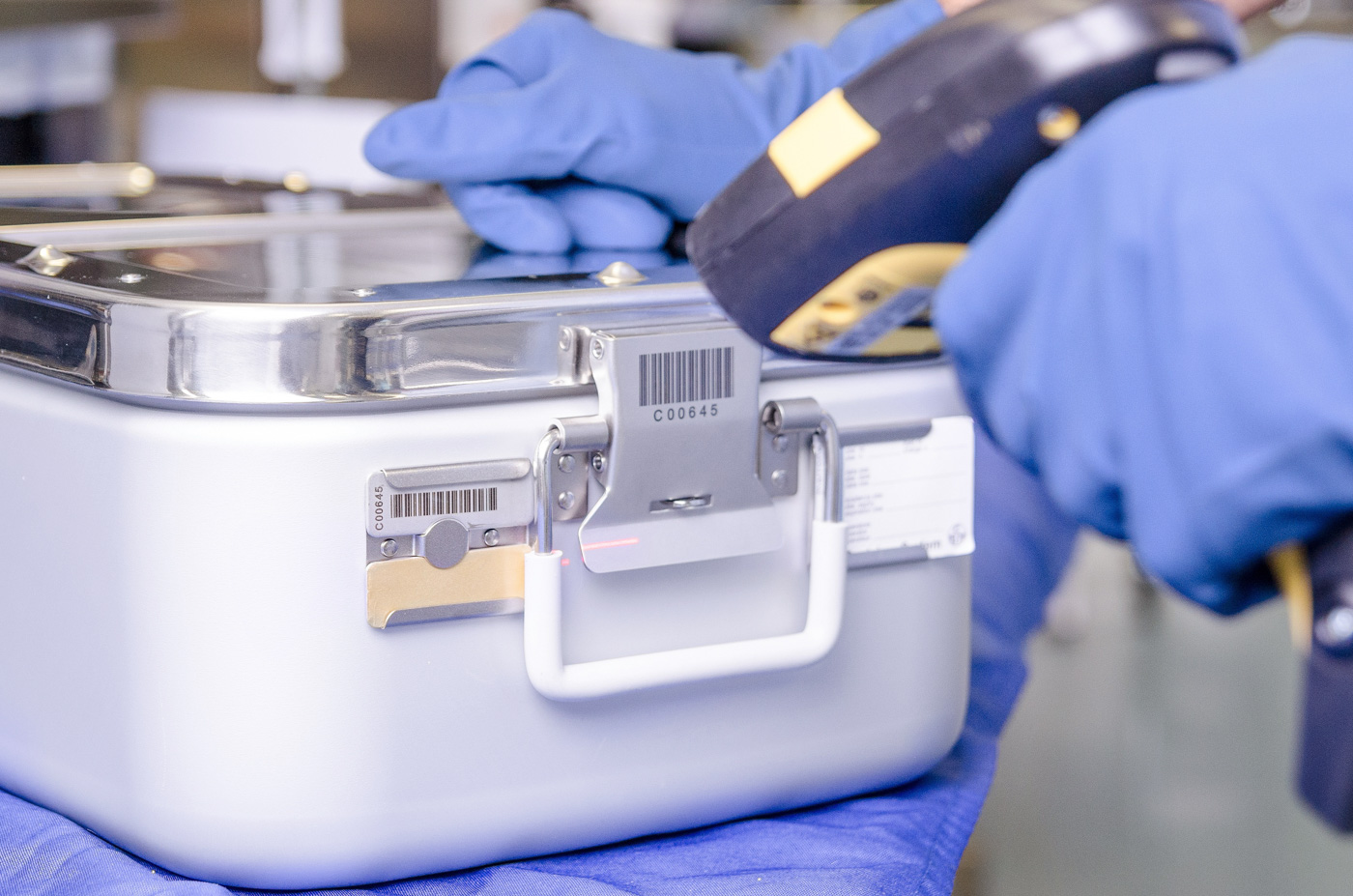

Each container is supplied with a unique serial number barcode, laser etched on both the lid and body, which can be read and used for counting and traceability purposes.

Ergonomic

Two strong comfortable and heat resistant silicone covered central handles.

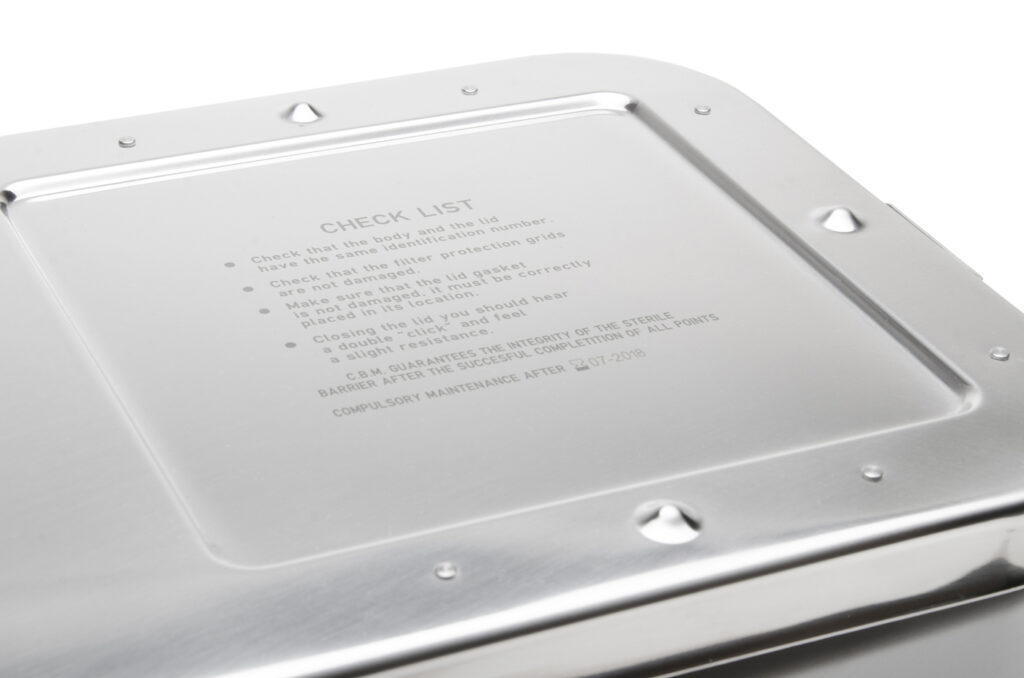

CBM Permaside Container System Stainless Steel Lid

Stainless Steel Lid

Check list laser etched onto lid.

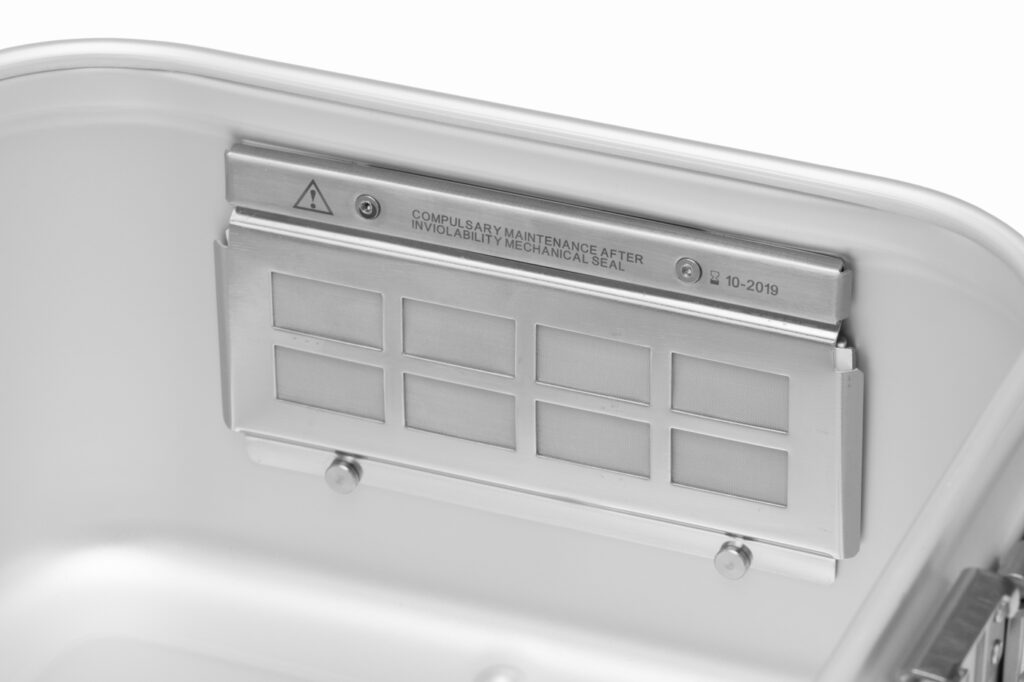

CBM Permaside Container System Vertical Side Filter

Vertical Side Filter

No filter inspection, dismantling or replacement is required. The included PTFE filters are certified for over 2,000 cycles or five years.

The filter expiry date is laser etched on each permanent filter cartridge and lid.

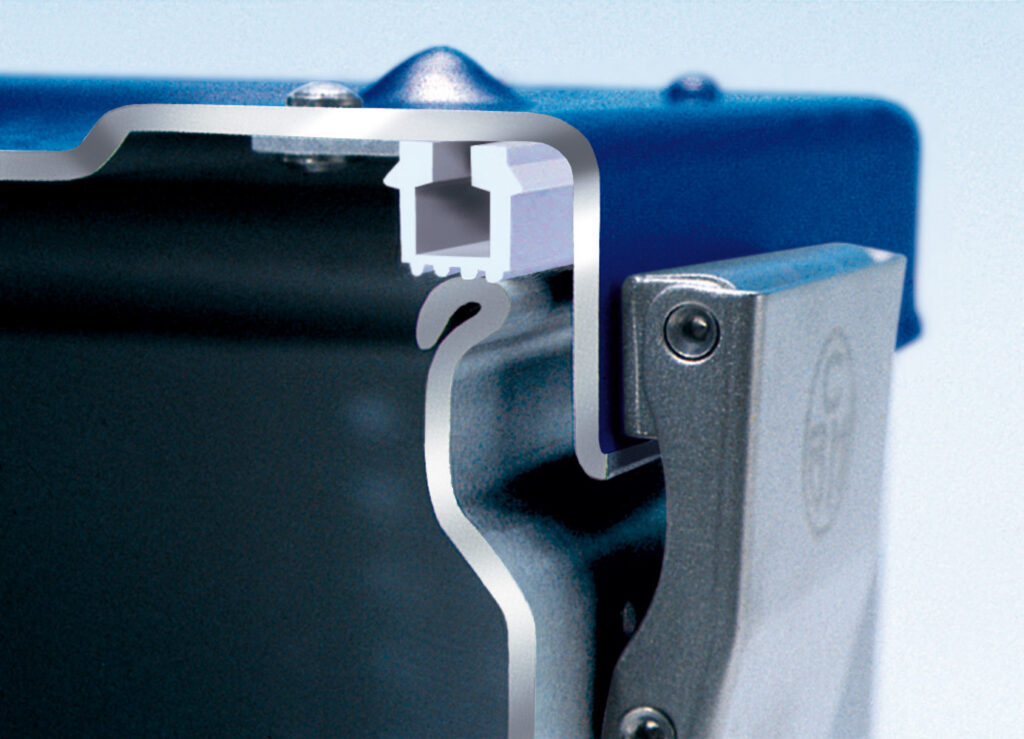

CBM Permaside Container System Robust Sealing

Robust Sealing

Rounded smooth upper rim to improve strength, which ensures a tight seal against the gasket. Gasket made of one piece of silicone.

CBM Permaside Container System Safety

Safety

Stacking is stable and safe, made easier with no filter in the container lid. This design decreases the risk of filter damage.
